Outdoor Front Service 960*960mm P6.67 Led Video Display
Outdoor front service 960*960mm led video display screen P6.67
HELILAI is a national high-tech enterprise, focusing on the research and development, production and sales of LED series application products, and solution manufacturers. At present, the company has: Shenzhen LED Industrial Park covers an area of 68,000 square meters (46,000 square meters for rent and 22,000 square meters for self-use), and 42,000 square meters of Hunan Helilai Smart Display LED Production Base has been put into use.
Main products: intelligent and cultural creative LED display, high-definition small-pitch LED display, indoor and outdoor full-color LED display, LED transparent glass screen, intelligent LED floor tile scene screen, intelligent induction LED interactive screen.
Application field: Committed to intelligent transportation, intelligent security monitoring, radio and television broadcasting, video conference, intelligent advertising media, real estate and commercial display, science and education stadiums, cultural performance stage display, intelligent scene creative display, and other intelligent terminal intelligent display engineering applications
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Products features
1) Dual-maintenance, from both the front side and the rear side
2) Easy maintenance, easy to disassemble the modules with a hexagonal screwdriver
3)The LED screen supports IP65 dust and water resistance, which can withstand some bad weather during outdoor activities
4)Vertical and horizontal viewing angles up to 140°, ultra-wide viewing angles, provide you with the largest screen viewing area, and provide you with clear and natural images in all directions.
Products Description
| 1 | LED types | SMD2727 | ||||||
| 2 | Pixel pitches(mm) | 6.67mm | ||||||
| 3 | Pixel composition | 1RGB | ||||||
| 4 | Module resolution(W*H) | 48*48 | ||||||
| 5 | Module size(W*H) | (W)320mm×( L)320mm | ||||||
| 6 | Mark | Yes | ||||||
| 7 | LED brand | Hongsheng | ||||||
| 8 | Drive IC | ICN2037/16380 | ||||||
| 9 | Pixel density | 22500pixels/ m² | ||||||
| 10 | Brightness(CCT 6500K) | >5500cd/ m²(adjustable) | ||||||
| 11 | Level/vertical angle | 140°/140° | ||||||
| 12 | Flatness | ≥98% | ||||||
| 13 | Gray scale | red,green,blue all≥10bit | ||||||
| 14 | Scan mode | 1/6scan | ||||||
| 15 | Refresh frame frequency | 60Hz/s | ||||||
| 16 | Refresh rate | 1920-3840Hz/s | ||||||
| 17 | Max.power consumption | 72W/PCS | ||||||
| 18 | Continuous working hours | ≥7×24hrs,(continuously display available) | ||||||
| 19 | MBTF | ≥10000 hours | ||||||
| 20 | LED life time | 100,000 hours | ||||||
| 21 | Failure pixel rate | ≤0.0001 | ||||||
| 22 | Operating Temp. | -20℃～60℃ | ||||||
| 23 | Humidity Range | 10％～95％RH,Non-condensing | ||||||
| 24 | Screen color temperature | 10000K(adjustable) | ||||||
| 25 | Brightness adjust | Manually/Automatic/Program control | ||||||
| 26 | Correction | Brightness and chroma correct point by point | ||||||
| 27 | Control method | Synchronous/Asynchronous control | ||||||
| 28 | Display working voltage | AC：110/220V,50~60Hz/s | ||||||
Products certificates
Production workshop
Outdoor display cabinet types
Products best viewing distance
Products applications
Commercial Advertising:

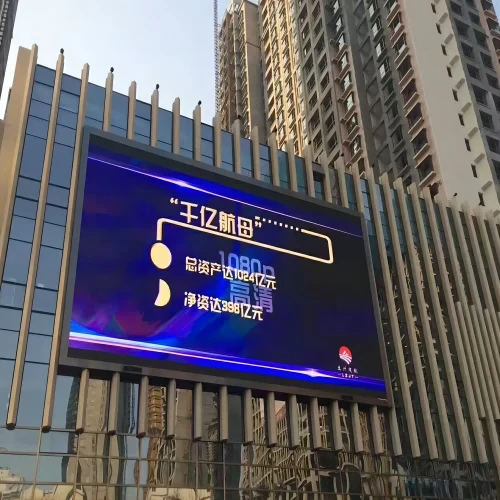

Mall Exterior Walls: Installed on the outer walls of mall ground floors, they reach a wider audience as people passing by can clearly see the video advertisements, benefiting businesses in promoting their brands, products, or services.
Commercial Streets and Pedestrian Zones: In these densely populated areas, P6.67 outdoor displays showcase various commercial ads, attracting pedestrians' attention and enhancing brand awareness.
Hotels and Resorts: They are used to display hotel services, event previews, etc., enhancing the guest experience.
Sports Events:
Stadium Perimeter: It provides real-time display of match information, player stats, ads, etc., offering spectators a rich viewing experience.
Sports Event Venues: They are used to showcase event information, sponsor ads, etc., enhancing the professionalism and commercial aspect of the events.
Public Facilities:
Parks and Squares: They are used to broadcast public information, promotional videos, etc., enhancing the city's image and cultural atmosphere.
Transportation Hubs: Such as airports, railway stations, and bus stations, they display flight schedules, train times, ads, etc., providing convenience for travelers.
Entertainment Events:
Concerts and Music Festivals: They are used to display performance information, artist introductions, etc., enhancing the professionalism and interactivity of the shows.
Stage Backdrops: As a stage backdrop screen, they can display various visual effects, enhancing the spectacle of the performances.
Other Venues:
Corporations and Factories: They are used to showcase company culture, product information, safety warnings, etc., enhancing corporate image and employee safety awareness.
Schools and Training Institutions: They are used to broadcast educational information, event previews, etc., enhancing the interactivity and enjoyment of the educational environment.
Products package
Products project case
our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
