Double Face LED Pharmacy Cross Display
1.waterproof, radiation proof
2.light weight, thin depth, front maintenance
3.low power consumption, high bright, easy installation
|
P16 double side pharmacy cross display
|
||
|
LED display
|
Product
|
P16
|
|

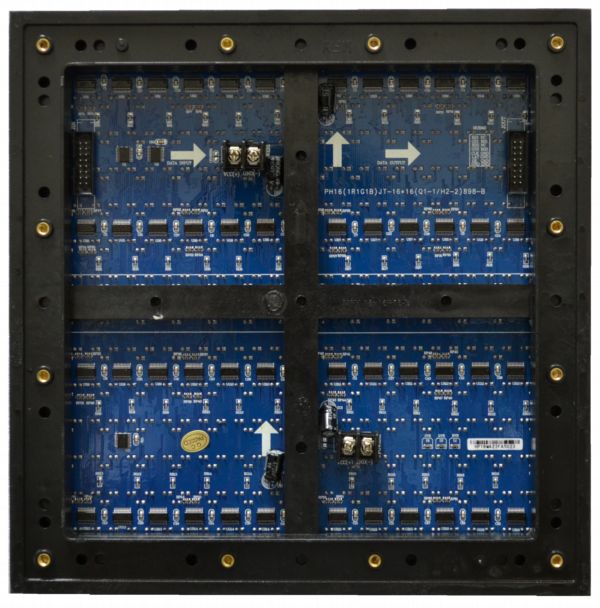

Module size
|
256*256mm
|
|
|
Pixel density
|
3906dots/㎡
|
|
|
LED lamp
|
DIP346
|
|
|
Module resolution
|
16*16
|
|
|
Module consumption
|
40W
|
|
|
Viewing distance
|
16-160m
|
|
|
Max.power consumption
|
650W/㎡
|
|
|
Standard cabinet size
|
768*768mm
|
|
|
Standard cabinet pixel
|
48*48
|
|
|
Drive mode
|
Static
|
|
|
Brightness
|
7500-8000cd/㎡
|
|
|
HUB mode
|
HUB40
|
|
|
Drive IC
|
JXI5020
|
|
|
Frame frequency
|
≧60Hz/s
|
|
|
Refresh rate
|
≧360Hz/s
|
|
|
mttf
|
>5000hours
|
|
|
lifetime
|
>100000hours
|
|
|
Defect rate
|
<0.0001
|
|
|
Video signal input
|
RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc
|
|
|
Temperature range
|
Storage:﹣20℃-65℃;Working:﹣20℃~50℃
|
|
|
Gray Scale/color
|
4096 grades for R ,G and B Display ≥16.7M Colors
|
|
|
Working voltage
|
AC 110/220V
|
|
|
Viewing angle
|
Horizontal:110º Vertical :55º
|
|
|
Display content
|
Videos, Pictures,Graphics etc
|
|
|
Operating Humidity
|
10~90%
|
|
|
Storage Humidity
|
10~90%
|
|
|
Continue working time
|
24hours
|
|
|
control mode
|
Synchronization /Asynchronization
|
|
Introduction:
LED pharmacy cross is one kind of heteromorphic display consisting of LED cross modules and cross cabinet. The system combines with the technology of optics, microelectronics, information processing and transmission, mechanics and other technology etc. The main application areas: pharmacies, grocery stores, convenience stores.
Features:
1.waterproof, radiation proof
2.light weight, thin depth, front maintenance
3.low power consumption, high bright, easy installation
Our company, HELILAI, is one of the best double face led pharmacy cross display manufacturers and suppliers in China, which offers customers newest and high-quality double face led pharmacy cross display wholesale service at a low price. Should you be interested in our products, please contact our factory.
