P2 Led Module For Event Display Screen
P2 led module for event display screen

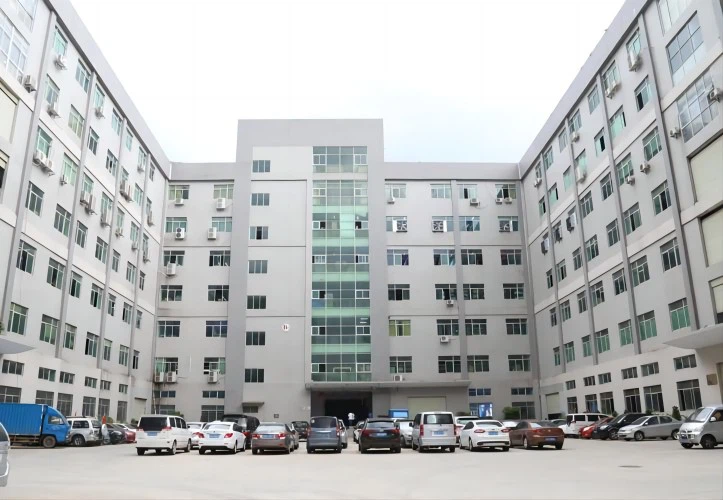

sHENZHEN HELILAI TECHNOLOGY CO.,LTD
HELILAI is a national high-tech enterprise, focusing on the research and development, production and sales of LED series application products, and solution manufacturers. At present, the company has: Shenzhen LED Industrial Park covers an area of 68,000 square meters (46,000 square meters for rent and 22,000 square meters for self-use), and 42,000 square meters of Hunan Helilai Smart Display LED Production Base has been put into use.
Main products: intelligent and cultural creative LED display, high-definition small-pitch LED display, indoor and outdoor full-color LED display, LED transparent glass screen, intelligent LED floor tile scene screen, intelligent induction LED interactive screen.
large enterprise scale
Standardized Production
High-Quality Customized Services
why choose our products
1. High pixel density: Our P2 indoor module has a pixel density of up to 250,000 pixels/㎡, which can present clearer and more delicate image details, so that the audience can get better visual effects.
2. High refresh rate: Our P2 indoor module has a refresh rate of up to 3840Hz, which is able to eliminate the flickering phenomenon and ensure the smoothness and stability of the displayed content.
3. High gray grade: Our P2 indoor module has excellent performance in gray level, which can reach 16bit high gray grade, and the display color is more vivid and realistic.
4. Low power consumption: Our P2 indoor module adopts energy-saving LED light source, which has low power consumption and low heat generation.
Products Description
| 1 | LED types | SMD1515 | ||||||
| 2 | Pixel pitches(mm) | 2mm | ||||||
| 3 | Pixel composition | 1RGB | ||||||
| 4 | Module resolution(W*H) | 160*80 | ||||||
| 5 | Module size(W*H) | (W)320mm×( L)160mm | ||||||
| 6 | Mark | No | ||||||
| 7 | LED brand | Hongsheng | ||||||
| 8 | Drive IC | 16380IC | ||||||
| 9 | Pixel density | 250000pixels/ m² | ||||||
| 10 | Brightness(CCT 6500K) | >500cd/ m²(adjustable) | ||||||
| 11 | Level/vertical angle | 160°/140° | ||||||
| 12 | Flatness | ≥98% | ||||||
| 13 | Gray scale | red,green,blue all≥16bit | ||||||
| 14 | Scan mode | 1/40scan | ||||||
| 15 | Refresh frame frequency | 60Hz/s | ||||||
| 16 | Refresh rate | 3840Hz/s | ||||||
| 17 | Max.power consumption | 25W/PCS | ||||||
| 18 | Continuous working hours | ≥7×24hrs,(continuously display available) | ||||||
| 19 | MBTF | ≥10000 hours | ||||||
| 20 | LED life time | 100,000 hours | ||||||
| 21 | Failure pixel rate | ≤0.0001 | ||||||
| 22 | Operating Temp. | -10℃～60℃ | ||||||
| 23 | Humidity Range | 10％～90％RH,Non-condensing | ||||||
| 24 | Screen color temperature | 10000K(adjustable) | ||||||
| 25 | Brightness adjust | Manually/Automatic/Program control | ||||||
| 26 | Correction | Brightness and chroma correct point by point | ||||||
| 27 | Control method | Synchronous/Asynchronous control | ||||||
| 28 | Display working voltage | AC：110/220V,50~60Hz/s | ||||||
Products production progress
Products certifications
Products applications
Shopping Malls: P2 indoor displays can be utilized for various promotional activities, brand exhibitions, and advertisement broadcasts within shopping malls, captivating customers' attention and enhancing their shopping experience.
Hotels: In hotel lobbies, banquet halls, and other venues, P2 indoor displays can showcase hotel information, meeting schedules, welcome messages, etc., thereby enhancing the hotel's professional image and service level.
Meeting Rooms: P2 indoor displays can function as display walls or presentation platforms in meeting rooms, used for exhibiting PPTs, videos, charts, and other meeting materials, aiding attendees in better understanding and absorbing the meeting content.
Exhibition Halls: In exhibition halls, P2 indoor displays can be employed to display exhibit information, company introductions, event schedules, etc., offering visitors a rich visual experience.
Monitoring Command Centers: P2 indoor displays can be used for the real-time display of monitoring footage, assisting staff in promptly grasping the on-site situation and making accurate judgments and decisions.
Emergency Command Centers: In emergency command situations, P2 indoor displays can be utilized to display emergency plans, rescue progress, and other relevant information, thereby improving the efficiency and accuracy of emergency responses.
Theaters and Performance Venues: P2 indoor displays can be used for displaying stage backgrounds, performance information, audience prompts, etc., thereby enhancing the visual effects of performances and audience engagement.
Museums and Art Galleries: In museums and art galleries, P2 indoor displays can be employed to display artwork information, historical backgrounds, guided tour routes, etc., providing visitors with convenient visiting experiences.
Multimedia Classrooms: P2 indoor displays can be used for multimedia teaching, exhibiting courseware, videos, experimental demonstrations, etc., thereby improving teaching effectiveness and students' learning interest.
Training Institutions: In training institutions, P2 indoor displays can be utilized to display course information, student works, teaching videos, etc., providing learners with abundant learning resources and visual experiences.
High-end Clubs and Private Venues: P2 indoor displays can be used to showcase artworks, decorative patterns, etc., thereby enhancing the venue's grade and taste.
Transportation Hubs: In airports, train stations, and other transportation hubs, P2 indoor displays can be employed to display flight information, train schedules, passenger reminders, etc., providing convenient travel services for passengers.
Parts of the project cases
Our payment and delivery
our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
6.Customized designs, OEM and ODM are accepted
7.Protction of your ideas of design and all your private information
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
FAQ
Q: Can P2 led module use for front service display ?
Q: P2 display can do 7680Hz refresh rate ?
Q: What is your delivery time for P2 module ?
Q: Can u provide the samples ?
Q: If we don't know how to install the display , can u help us ?
