P6 Outdoor Full Color Led Module
|
Product |

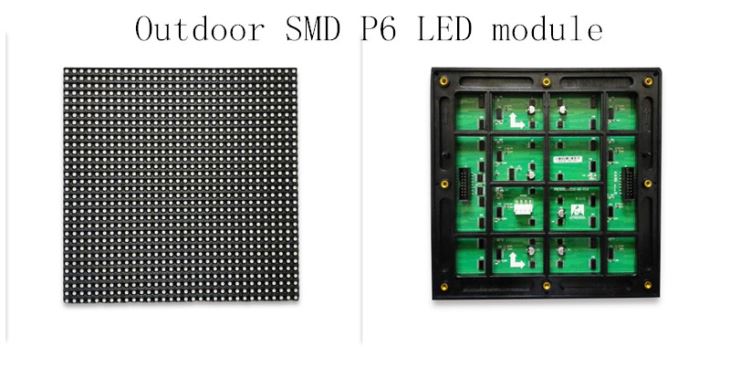

P6 outdoor SMD full color LED module |
|
|
Module size |
192*192mm |
|
|
Pixel density |
27777dots/m² |
|
|
LED lamp |
SMD3535 |
|
|
Module resolution |
32*16 |
|
|
Module consumption |
30W/pcs |
|
|
Viewing distance |
6-160m |
|
|
Max power consumption |
850W/m² |
|
|
Standard cabinet size |
768*768mm |
|
|
Drive mode |
1/8scan |
|
|
Brightness |
≥6000cd/m² |
|
|
HUB mode |
HUB75 |
|
|
Drive IC |
FM5020/SM16107 |
|
|
Frame frequency |
≧60Hz/s |
|
|
Refresh rate |
≧360Hz/s |
|
|
MTTF |
>5000 hours |
|
|
Life time |
>100,000 hours |
|
|
Defect rate |
<0.0001 |
|
|
Video signal input |
RF, S-video, RGB, RGBHV, YUV, YC, composition |
|
|
Temperature range |
Storage |
-20 to 65°C |
|
Working |
-20 to 50°C |
|
|
Gray scale/color |
4096 grades for R ,G and B |
|
|
Display |
≥16.7M colors |
|
|
Working voltage |
110/220V AC |
|
|
Viewing angle |
Horizontal |
120º |
|
Vertical |
120º |
|
|
Display content |
videos, pictures and graphics |
|
|
Operating humidity |
10-90% |
|
|
Storage humidity |
10-90% |
|
|
Continue working time |
24 hours |
|
|
Control mode |
synchronization/asynchronization |
|
|
Warranty |
2 years |
|
|
Module weight |
0.35KG/PCS |
|
|
Delivery time |
7-15 days |
|
Advantages:
High resolution
High brightness
High quality
High definition
Cost effective
Good cooling and easy to install
Available for customization
