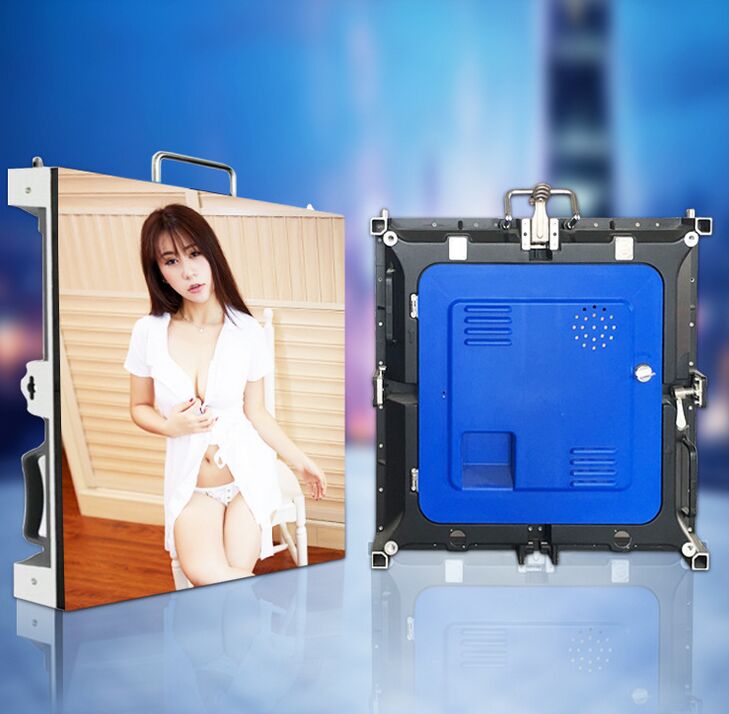

P4 Outdoor LED Module SMD Full Color
Good flatness
Perfect Uniformity & Consistency
Vivid Images
Best effect for outdoor video
Send Inquiry
Specification
| Specification | |||
| Size:256mm×128mm | |||
| LED color:1R1G1B 3in1 led1921 | |||
| Module Power Consumption 6.5A / 32.5W | |||
| Constant Current Drive:1/8Scan IC 5020/MBI5124 | |||
| RLED: Epistar{750CD} Wavelength 625±2nm | |||
| GLED :Epistar{1500CD} Wavelength 520±2nm | |||
| BLED :Epistar{350CD} Wavelength 470±2nm | |||
| Weight0.35kg | |||
| Module Thickness 1.3CM | |||
| Power Supply VH | |||
| Brightness 5500CD | |||
| Module Pixel 64×32=2048 Dot Pixel 4mm | |||
| LEDAngle Horizontal≥140º Vertical≥140º | |||
| Connector: HUB75 | |||
| Color Ratio: R:G:B/3:6:1 | |||
| Warranty | Use Life 100000Hrs | ||
| Warranty 2 Year | |||
| Screen Parameter | Brightness, automatic adjust by sensors | ||
| Pixel | 62500 Dot | ||
| Continuous working time≥48hrs | |||
| Best view distance 4m--80m | |||
| Average Power consumption 500W/㎡ | |||
| ValtageAC220V±10% | |||
| Video Signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION | ||
| Packing | |||
| Power cable 45CM by 2 | Flat cable 20CM | ||
| Carton Size 63.2*31.7*30 | Volume 0.061CBM | ||
| Weight 14kg | QTY/CTN 36PCS/CTN | ||
| 30.6PCS/SQM | |||
