P2.5 SMD Indoor LED Module shenzhen Manufacturer

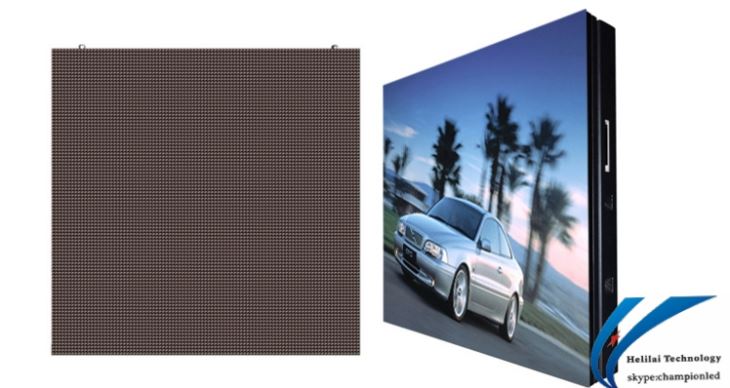

P2.5 indoor SMD full color led module
Specification
| Specification | |||
| Size:160mm×160mm | |||
| LED color:1R1G1B 3in1 led 2121 | |||
| Module Power Consumption 6A / 30W | |||
| Constant Current Drive:1/32 Scan IC SM16016/MBI5124 | |||
| RLED Epistar{350-400CD} Wavelength625±2nm | |||
| GLED Epistar{650--750CD} Wavelength520±2nm | |||
| BLED Epistar{200--300CD} Wavelength470±2nm | |||
| Weight0.24kg | |||
| Module Thickness 1.5CM | |||
| Brightness 1500CD | |||
| Module Pixel 64×64=4096 Dot Pixel 2.5mm | |||
| LEDAngle Horizontal≥140º Vertical≥140º | |||
| Connector: HUB75 | |||
| Color Ratio: R:G:B/3:6:1 | |||
| Warranty | Use Life 100000Hrs | ||
| Warranty 1 Year | |||
| Screen Parameter | Brightness, automatic adjust by sensors | ||
| Continuous working time≥48hrs | |||
| Dot/sqm | 160000 Dot | ||
| Best view distance 2.5m--50m | |||
| Average Power consumption 550W/㎡ | |||
| ValtageAC220V±10% | |||
| Video Signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION | ||
| Packing | |||
| Power cable 45CM by 2 | Flat cable 20CM | ||
| Carton Size 36.5*34.8*35.5 | Volume 0.08CBM | ||
| Weight 18.50kg | QTY/CTN 64PCS/CTN | ||
| 39.1PCS/SQM | |||
Application
1. The applications for Multi Line Displays are endless.
2. Multi Line LED Electronic Displays are easy to use and can be up-dated quickly and with no technical expertise
3. Available in a variety of character heights: although if you have a multi line display made up from a number of Bi-Line displays, you can show a single line of text in double height format which will usually double these heights. Larger height signs are also available.
4. LED Colour Options are: RED, Green Blue, Yellow, Amber, Purple, Bi-color, RGB/Full Color.
5. Various speed and Characters: The signs can display most different Characters and Graphic Symbols.
6. The signs can run at variable Speeds, and have various display features including Bold, Run Left/Right etc."
7. Can be controlled remotely , like WIFI, GSM, GPRS,3G,4G,5G
