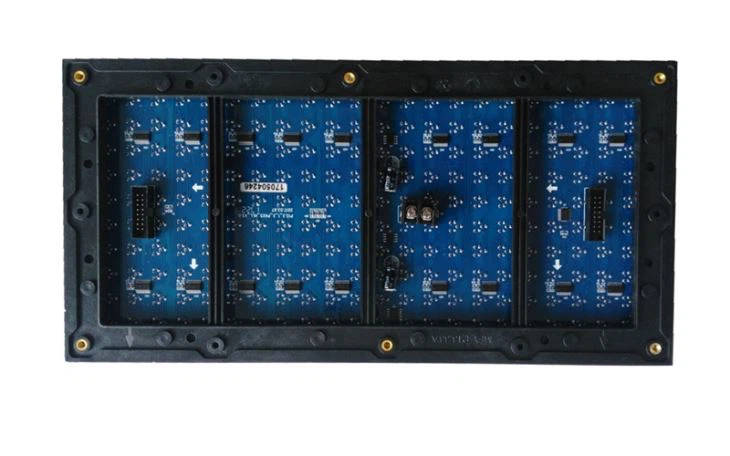

M13.33 RGB Color Led Display Module
Advantages:
1.Clear picture without flicker and distortion
2. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
3. Low consumption, stable performance, highly durable
4. High brightness & broad viewing angle, brightness can be adjusted automatically or manually
5. 1 years warranty, easy to install & maintenance
6. CE, ROHS, CCC
Usage:
The terminator of single color! Most popular for shops, companies.
Use for message borad, bar screen, LED banner sign.
Send Inquiry
| Specification | |||||||
| Size:320mm×160mm | |||||||
| LED color:1R1G1B 246 led | |||||||
| Power consumption 4.0A / 20W | |||||||
| Drive:1/6 scan IC SM16016 | |||||||
| Red LED Epistar 7mil{550-600CD} wavelength620±2nm | |||||||
| GreenLED Huachan8mil{1800--2000CD} wavelength525±2nm | |||||||
| Blue LED Huachan8mil {350--450CD} wavelength470±2nm | |||||||
| Module weight 0.519kg | |||||||
| Module thickness 2.2CM | |||||||
| NO.: GMC1368A | |||||||
| Brightness 3500CD | |||||||
| Module Pixel 24x12=288dot 13.33mm | |||||||
| LED Angle Horizontal≥90º Vertical≥45º | |||||||
| Connector: HUB08 | |||||||
| Ratio: R:G:B/3:6:1 | |||||||
| Warranty | Use life 75000hrs | ||||||
| Warranty One year | |||||||
| Pixel | 5625dot/sqm | ||||||
| Screen Parameter | Brightness, automatic adjust by sensors | ||||||
| Continuous working time≥48hrs | |||||||
| Best view distance 13m--190m | |||||||
| Average Power consumption 210W/㎡ | |||||||
| AC220V±10% | |||||||
| Video Signal | RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION | ||||||
| Packing | |||||||
| Power cable:20CM | Flat cable 20CM | ||||||
| Carton size:53.5*43.5*34.5 | Volume 0.08CBM | ||||||
| Weight:23.80kg/ctn | QTY/CTN 42PCS/ctn | ||||||
| 19.55pcs modules/sqm | |||||||
|
|
|||||||
