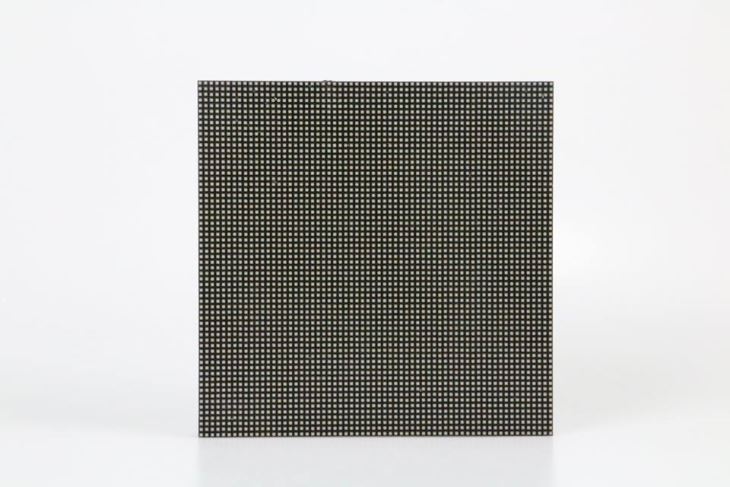

Factory Indoor P2.5 LED Module

Key Specifications/Special Features:

• Pitch: 2.5mm

• LED module size: 160*160mm

• LED type: SMD2121

• Density: 160,000dots/m²

• Pixel configuration: 1R1G1B

• Driving method: 1/32 scan

• Brightness: 1300cd/m²

• Best viewing distance: 3-50m

• View angle: 160/160°(H/V)

• Average power: 600W/m²

• Maximum power: 1200W/m²

• Frame frequency: 60Hz

• Refresh frequency: 400Hz

• Input voltage: 220V AC/50Hz or 110V AC/60Hz

• Earth leakage current: <3mA

• Dot defects rate: <0.0001

• MTBF: >50,000 hours

• Life span: 100,000 hours

• Operating temperature and RH: -40 to 65°C/20-90% RH

• Storage temperature and RH: -45 to 85°C/10-95%RH

• Heat dissipation type: built-in fans

• Input signal: RF, S-video, RGB, RGBHV, YUV, YC, composition

• Certifications: CCC, CE, FCC, UL

• RoHS Directive-compliant
