45 Degree Led Module
Indoor full color 45degree led module
HELILAI is a national high-tech enterprise, focusing on the research and development, production and sales of LED series application products, and solution manufacturers. At present, the company has: Shenzhen LED Industrial Park covers an area of 68,000 square meters (46,000 square meters for rent and 22,000 square meters for self-use), and 42,000 square meters of Hunan Helilai Smart Display LED Production Base has been put into use.
Main products: intelligent and cultural creative LED display, high-definition small-pitch LED display, indoor and outdoor full-color LED display, LED transparent glass screen, intelligent LED floor tile scene screen, intelligent induction LED interactive screen.
Application field: Committed to intelligent transportation, intelligent security monitoring, radio and television broadcasting, video conference, intelligent advertising media, real estate and commercial display, science and education stadiums, cultural performance stage display, intelligent scene creative display, and other intelligent terminal intelligent display engineering applications
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
Products Description
| 1 | LED types | SMD2020 | ||||||
| 2 | Pixel pitches(mm) | 2.5mm | ||||||
| 3 | Pixel composition | 1RGB | ||||||
| 1 | Module resolution(W*H) | 64*64 | ||||||
| 2 | Module size(W*H) | (W)160mm×( L)160mm | ||||||
| 3 | Mark | No | ||||||
| 4 | LED brand | Hongsheng | ||||||
| 5 | Drive IC | 16380IC | ||||||
| 6 | Pixel density | 160000pixels/ m² | ||||||
| 7 | Brightness(CCT 6500K) | 500-800cd/ m²(adjustable) | ||||||
| 8 | Level/vertical angle | 140°/140° | ||||||
| 9 | Flatness | ≥98% | ||||||
| 10 | Gray scale | red,green,blue all≥10bit | ||||||
| 11 | Scan mode | 1/32scan | ||||||
| 12 | Refresh frame frequency | 60Hz/s | ||||||
| 13 | Refresh rate | 3840Hz/s | ||||||
| 14 | Max.power consumption | 20W/PCS | ||||||
| 15 | Continuous working hours | ≥7×24hrs,(continuously display available) | ||||||
| 16 | MBTF | ≥10000 hours | ||||||
| 17 | LED life time | 100,000 hours | ||||||
| 18 | Failure pixel rate | ≤0.0001 | ||||||
| 19 | Operating Temp. | -10℃～60℃ | ||||||
| 20 | Humidity Range | 10％～90％RH,Non-condensing | ||||||
| 21 | Screen color temperature | 10000K(adjustable) | ||||||
| 22 | Brightness adjust | Manually/Automatic/Program control | ||||||
| 23 | Correction | Brightness and chroma correct point by point | ||||||
| 24 | Control method | Synchronous/Asynchronous control | ||||||
Products Applications
1.Hotel, bar and many other load-bearing columns, interior decoration to package these columns into LED display, in this case the selection of LED right-angle module to do the most suitable, the square pillar wrap up without gaps.

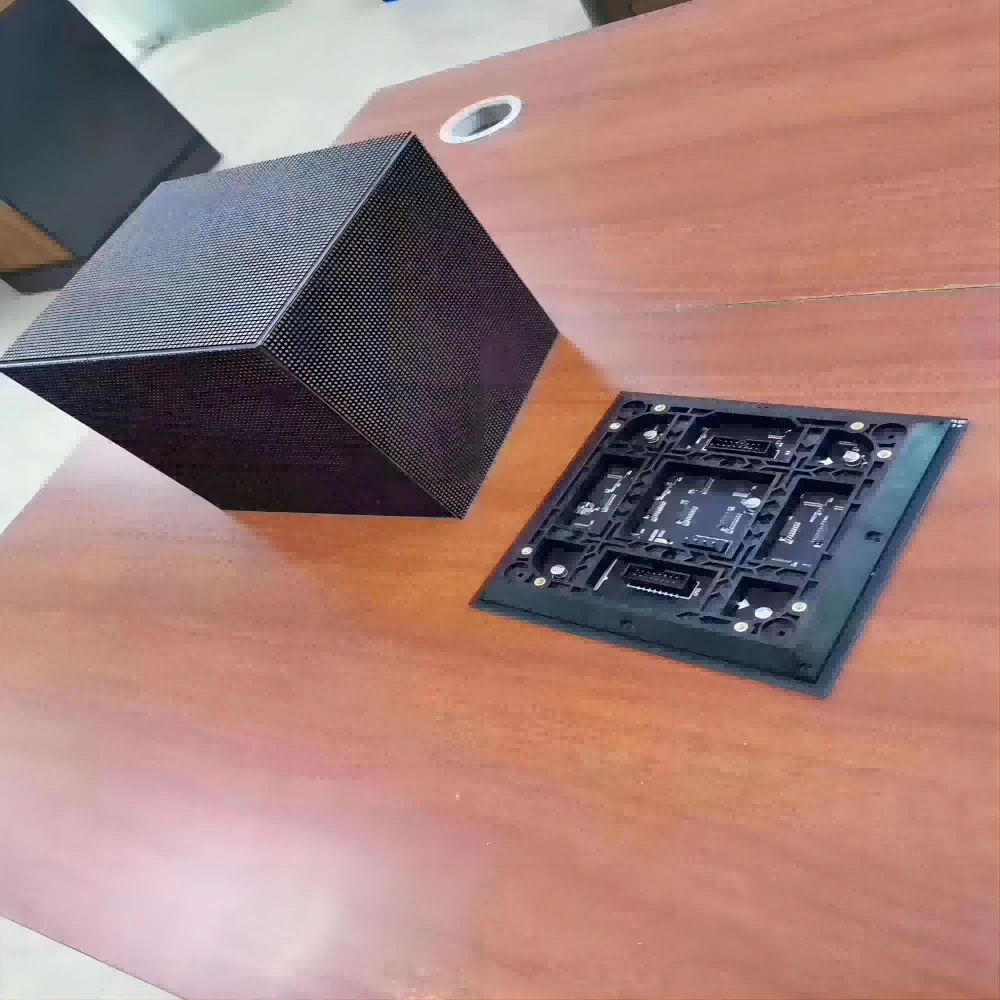

2.Indoor Rubik's Cube screen, 45 degree angle module perfectly solves the problem of right-angle assembly
Products certificates
Products production progress
shipping & payment
our services
Pre-sale service
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
After-sale service
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
