What is the difference between DIP and SMD LED display? What factors to consider when choosing

What is the difference between DIP and SMD LED display? What factors to consider when choosing?





DIP LED displays and SMD LED displays exhibit significant differences in multiple aspects, and selection should be based on specific needs and environmental conditions.



I. Differences between DIP LED displays and SMD LED displays



Packaging Technology and Structure:

DIP LED (Dual In-line Package): Utilizes through-hole packaging, where LED chips are inserted into a PCB board and soldered in place. This packaging method is relatively simple in process, low in cost, but larger in size, making it suitable for outdoor use.

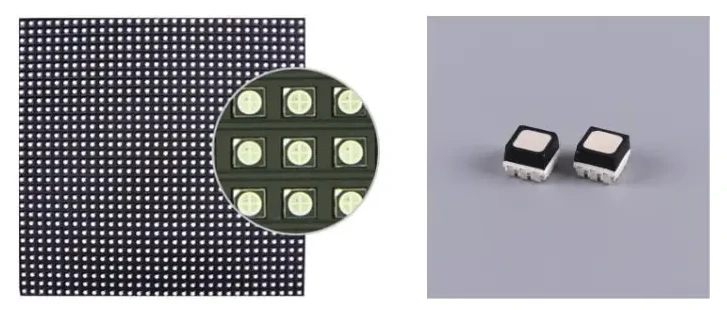

SMD LED (Surface Mounted Device): Employs surface-mount technology, where LED chips are directly attached to the surface of a PCB board and fixed through reflow soldering. This packaging method results in thinner and lighter LED displays with high resolution and wide viewing angles, suitable for indoor and high-precision display requirements.













Display Effect:

DIP LED: Due to its larger packaging size and larger pixel spacing, it has a relatively lower resolution but higher brightness, making it suitable for viewing from a distance.

SMD LED: Features small pixel spacing, high resolution, delicate display, high color reproducibility, and wide viewing angles, making it suitable for close-up viewing and high-precision display requirements.



Production Process and Cost:

DIP LED: The production process is relatively simple, with some processes potentially requiring manual operation, resulting in lower costs.

SMD LED: The production process is complex, requiring high-precision automated production equipment, and thus higher costs.



Reliability and Stability:

Both have high requirements in terms of reliability and stability. However, SMD LED, due to its more advanced packaging technology and materials, typically exhibits better resistance to vibration and impact, as well as a longer service life.



Application Environment:

DIP LED: Primarily used in outdoor displays such as billboards and sports venues, due to its high brightness and ease of waterproofing.

SMD LED: Mainly used in indoor displays such as conference rooms, monitoring centers, and studios, due to its high resolution and excellent display effect. However, with technological advancements, SMD LED is also beginning to be applied in certain outdoor settings.





II. Factors to Consider When Selecting



Usage Environment:

Select the appropriate packaging type based on the environment (indoor or outdoor) where the display will be installed. Outdoor environments typically choose DIP LED for its high brightness and waterproof performance; indoor environments tend to prefer SMD LED for its higher resolution and display quality.



Viewing Distance and Viewing Angle:

Consider the distance between the audience and the display, as well as the viewing angle requirements. DIP LED may be more suitable for long-distance viewing or when a wide viewing angle is needed; SMD LED should be chosen for close-up viewing or high-precision display requirements.



Budget and Cost:

Consider project budget and cost. DIP LED is usually lower in cost, suitable for projects with limited budgets; while SMD LED, although higher in cost, provides superior display quality and a longer service life.



Maintenance and Servicing:

Consider the maintenance and servicing needs of the display. SMD LED, due to its more advanced packaging technology, is typically easier to maintain and service.



Brand and Supplier:

Choose reputable brands and suppliers with good credibility to ensure product quality and after-sales service. Comprehensive assessments can be made by reviewing product specifications, referring to test reports provided by manufacturers, and user evaluations.
